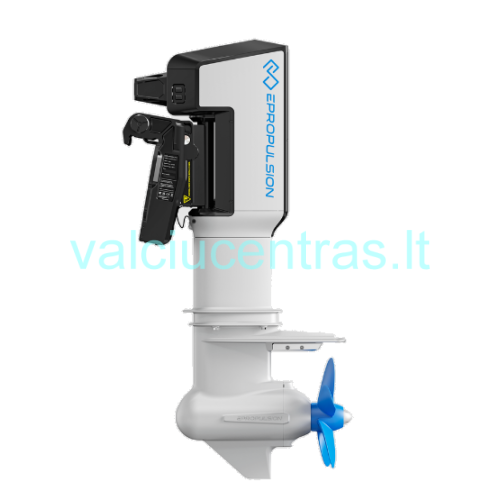

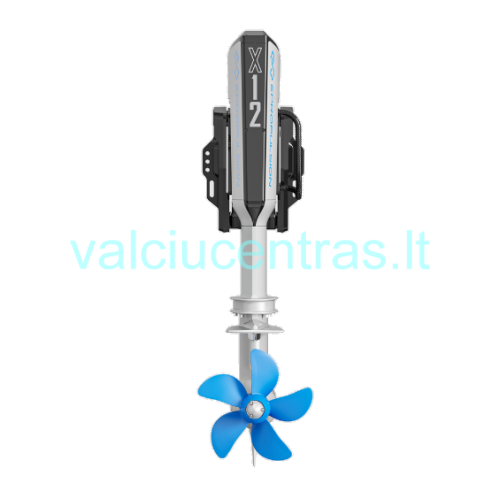

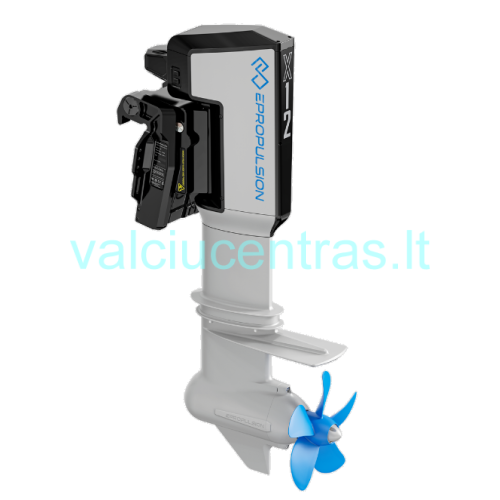

ePropulsion X-12 electric outboard motor

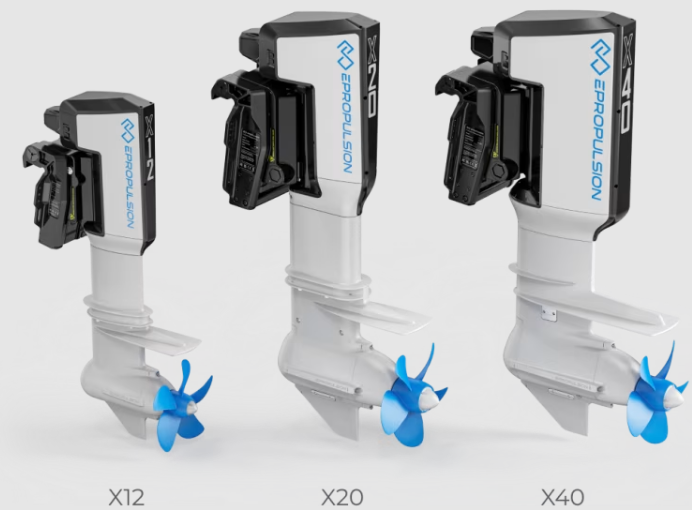

ePropulsion X Series motors are a new generation of electric outboard motors designed for RIB boats and small to medium-sized motorboats. This series includes the X12, X20, and X40 models. The X Series motors are designed as a fully integrated electric propulsion system that combines the motor, control, cooling, steering, and

The X series motors are designed as a fully integrated electric propulsion system that combines the motor, control, cooling, steering, and smart electronics. The X series motors feature: - A compact design that fits easily into the engine compartment

The X series engines feature:

• 12–40 kW power (depending on the model)

• 96 V DC high-voltage system, ensuring lower energy losses

• Smooth, even propeller operation across all speed ranges
• Motors designed to ensure excellent acceleration, stable sailing, and precise control, even under heavy load

Compact and space-saving design

Compared to traditional internal combustion engines, the X-series design takes up to 60% less space, which means: - Less space is needed for the engine compartment - Less space is needed for the engine compartment

• installation is easier

• more space is freed up on deck

• improves weight distribution on the boat

In addition, X Series engines are up to 65% lighter than internal combustion engines of similar power and about 30% lighter than other electric outboard motors, which has a positive effect on the boat's dynamics and overall efficiency.

Cooling and reliability

Depending on the model, natural cooling or a closed liquid cooling system (in higher-powered X series engines) is used to ensure stable operation even under heavy loads. All components are corrosion-resistant .

The ePropulsion X series motors feature:

• Electric steering system (±45°)

• Electric Trim/Tilt mechanism with an angle of −4° to +61°, which allows for precise maneuvering, convenient adjustment of the propeller position, and ensures optimal propeller performance.

All ePropulsion X series models have a hydrogeneration function, which allows: - to convert the energy of the propeller into electricity

• Use water flow while sailing to generate electricity
• Charge batteries without an external power source This is an extremely important function for sailing yachts.

This is an extremely important feature for sailing yachts.

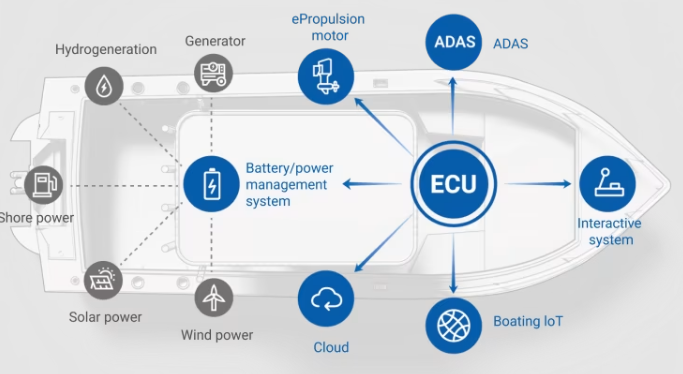

Smart eSSA architecture

X series motors are designed according to ePropulsion Smart System Architecture (eSSA):

• Modular and centralized system One ECU (control unit)

• One ECU (control unit)

• Simple plug-and-play connection of individual components

The system supports:

• Battery and energy management

• Hydrogen generation

• Solar, wind, and other renewable energy sources

• Connection to smart control devices and Boating IoT

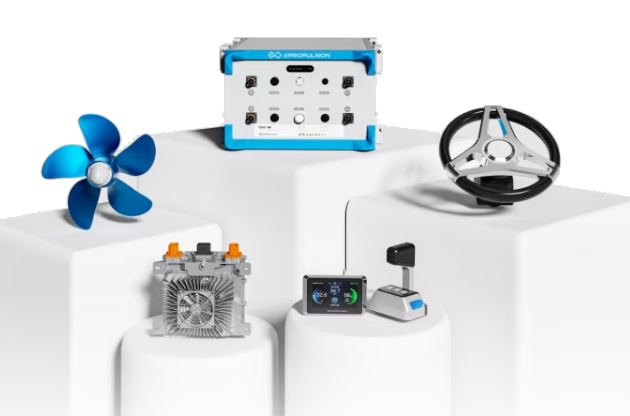

X series engines are compatible with:

• Smart Throttle – smart remote control handle

• Smart Display 5″ and 10″ control screens
• Various screws (LH/RH, different sizes)

• Control is intuitive and precise
• Top or side remote handle mounting solutions are available Easy maintenance and operation

• Easy maintenance and operation

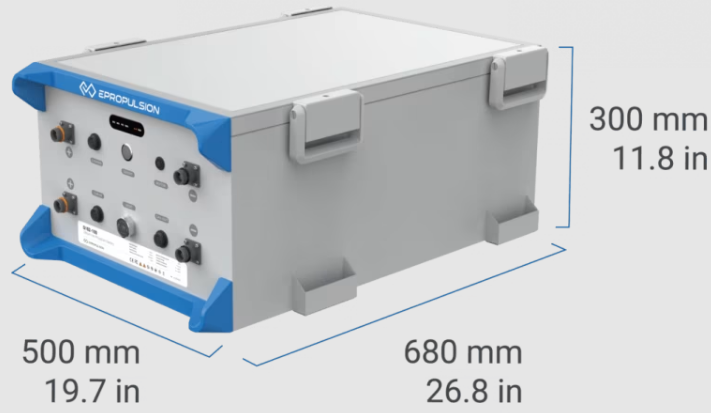

• G-series batteries designed for this series of motors

X series engines are designed to be easy to use even for inexperienced users.

The price shown applies to the engine only.

All additional components and accessories, such as:

batteries, control handles (Smart Throttle), displays (Smart Display), propellers, chargers, and other system components are not included in the package and must be purchased separately, depending on the specific boat configuration and needs. The package includes a 12-inch (30 cm) propeller, a 12-inch (30 cm) propeller, a 12-inch (30 cm) propeller, a 12-inch (30 cm) propeller, a 12-inch (30 cm) propeller, a 12-inch (30 cm) propeller, a 12-inch (30 cm) propeller, a 12-inch (30 cm) propeller, a 12-inch (30 cm) propeller, a 12-inch (30 cm) propeller, a 12-inch (30 cm) propeller, a 12-inch (30 cm) propeller, a 12-inch (30 cm) propeller, a 12-inch (30 cm) propeller, a 12-inch (30 cm) propeller, a 12-inch (30
